hV_List_Options.h File Reference

List of options for Pervasive Displays Library Suite - Advanced edition. More...

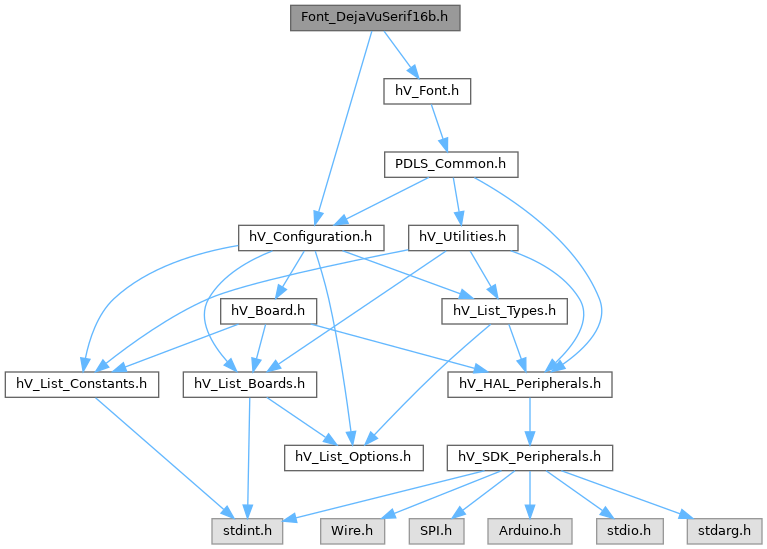

This graph shows which files directly or indirectly include this file:

Macros
#define	hV_LIST_OPTIONS_RELEASE   902
	Release.
#define	MAX_FONT_SIZE   64
	4- Maximum number of fonts
3- Set font mode
From header files or from external flash Basic edition: Terminal font Evaluation edition: DejaVu font as header Commercial edition: DejaVu font as either header or external SPI Flash Viewer edition: DejaVu font as header Note USE_FONT_HEADER requires addFont() Font Manager requires USE_FONT_HEADER Warning 8- and 16-bit MCUs may limit the size of the fonts. Use 32-bit MCUs for optimal performance.
#define	USE_FONT_TERMINAL   1
	Use default Terminal fonts.
#define	USE_FONT_HEADER   2
	Use fonts from header files.
#define	USE_FONT_FLASH   3
	Use fonts from external SPI Flash memory.
#define	USE_FONT_INTERNAL   4
	Use fonts from internal CGU.
#define	FONT_MODE   USE_FONT_HEADER
	Selected option.
5- Set SRAM memory
From internal MCU or external SPI Basic edition: MCU internal SRAM Commercial edition: MCU internal SRAM Evaluation edition: MCU internal or SPI external SRAM Viewer edition: MCU internal SRAM Note Corresponding type defined at hV_List_Types.h
#define	USE_INTERNAL_MCU   1
	Use MCU internal.
#define	USE_EXTERNAL_SPI   2
	Use SPI External.
#define	SRAM_MODE   USE_INTERNAL_MCU
	Selected option.
6- Use virtual object
From hV_Screen_Virtual.h for extended compability Note Declare additional variables if USE_hV_SCREEN_SELF Virtual object requires ~1 kB bytes. Basic edition: self option Evaluation edition: virtual option Commercial edition: self and virtual options Viewer edition: virtual option Recommended: USE_hV_SCREEN_VIRTUAL Warning Issues with virtual function on arm-none-eabi-g++ 4.9.3: use USE_hV_SCREEN_SELF instead.
#define	USE_hV_SCREEN_VIRTUAL   1
	Use virtual object.
#define	USE_hV_SCREEN_SELF   2
	Do not use virtual object.
#define	USE_hV_SCREEN   USE_hV_SCREEN_VIRTUAL
	Selected option.
7- Set touch mode
Only two screens are ready for touch Basic edition: iTC 2.71 BW and iTC 3.70 BW Evaluation edition: iTC 2.71 BW and iTC 3.70 BW Commercial edition: iTC 2.71 BW and iTC 3.70 BW Viewer edition: iTC 2.71 BW and iTC 3.70 BW Note Touch uses I2C and polling over interrupt
#define	USE_TOUCH_NONE   0
	Do not use touch.
#define	USE_TOUCH_YES   1
	Use touch.
#define	TOUCH_MODE   USE_TOUCH_NONE
	Selected option.
8- Set haptic feedback mode
Basic edition: no haptic feedback Evaluation edition: ERM or LRA Commercial edition: ERM or LRA Viewer edition: no haptic feedback
#define	USE_HAPTICS_NONE   0
	No motor.
#define	USE_DRV2605L_ERM   1
	DRV2605L with ERM = eccentric rotating mass.
#define	USE_DRV2605L_LRA   2
	DRV2605L with LRA = linear resonant actuator.
#define	HAPTICS_MODE   USE_HAPTICS_NONE
	Selected option.
9- Set GPIO expander mode
Basic edition: no expander Evaluation edition: PCF8574 or PCA9536 Commercial edition: PCF8574 or PCA9536 Viewer edition: no expander
#define	USE_EXPANDER_NONE   0
	No I2C expander.
#define	USE_I2C_PCF8574   1
	PCF8574 8 ports GPIO I2C 100 kHz expander.
#define	USE_I2C_PCA9536   2
	PCA9536 4 ports GPIO I2C 400 kHz expander.
#define	USE_I2C_TCA6408   3
	TCA6408 8 ports GPIO I2C 400 kHz expander.
#define	EXPANDER_MODE   USE_EXPANDER_NONE
	Selected option.
10- Set string mode
Basic edition: String object Evaluation edition: char array Commercial edition: String object or char array Viewer edition: char array Note Corresponding type defined at hV_List_Types.h
11- Storage mode
Basic edition: none Evaluation edition: none Commercial edition: option Viewer edition: option Note Options can be combined #define STORAGE_MODE (USE_SD_CARD | USE_SPI_FLASH) #define STORAGE_MODE (USE_LINUX_FILES | USE_SERIAL_CONSOLE)
#define	USE_NONE   0
	No storage.
#define	USE_SD_CARD   1
	SD card.
#define	USE_SPI_FLASH   2
	External SPI Flash.
#define	USE_SERIAL_CONSOLE   4
	Serial console for writing only.
#define	USE_LINUX_FILES   8
	For Linux native applications.
#define	USE_WINDOWS_FILES   16
	For Windows native applications.
#define	STORAGE_MODE   USE_SERIAL_CONSOLE
	Selected options.
12- Debug options
Basic edition: none Evaluation edition: all Commercial edition: option Viewer edition: option Note Advanced and Viewer editions only
#define	DEBUG_CONTINUITY   0
	Continuity mode, 0 = no, 1 = yes; recommended = 0.
#define	DEBUG_SPI_SCREEN   0
	SPI debugging for screen, 1 = activated, otherwise 0; recommended = 0.
#define	DEBUG_DELAY   0
	Delay ms and us, 1 = activated, otherwise 0; recommended = 0.
#define	DEBUG_OTP   0
	Print OTP content, 0 = no, 1 = yes; recommended = 0.
#define	DEBUG_POWER   0
	Trace power management, 0 = no, 1 = yes; recommended = 0.
#define	DEBUG_WIRE   0
	Trace Wire, 0 = no, 1 = yes; recommended = 0.
13- EXT boards
Basic edition: EXT3 and EXT4 Evaluation edition: EXT3 Commercial edition: EXT3 Viewer edition: EXT3 Note Corresponding boards defined at hV_List_Boards.h
#define	BOARD_EXT2   2
	EXT2 board.
#define	BOARD_EXT3   3
	EXT3 and EXT3.1 boards.
#define	BOARD_EXT4   4
	EXT4 board.
#define	USE_EXT_BOARD   BOARD_EXT3
	Selected board.

Detailed Description

List of options for Pervasive Displays Library Suite - Advanced edition.

Project Pervasive Displays Library Suite
Based on highView technology

Content

• 1- List of supported Pervasive Displays screens, deprecated, see drivers
• 2- List of pre-configured boards, see hV_List_Boards.h
• 3- Font mode, internal MCU or external SPI Flash
• 4- Maximum number of fonts
• 5- SRAM memory, internal MCU or external SPI
• 6- Use self or virtual object
• 7- Touch mode, activated or not
• 8- Haptic feedback mode, activated or not
• 9. Set GPIO expander mode, activated or not
• 10. String object of char array options for string
• 11. Set storage mode, serial console by default
• 12. Set debug options
• 13. Select EXT board

Author

Rei Vilo

Date

21 Jan 2025

Version

902

Copyright

(c) Rei Vilo, 2010-2025

All rights reserved

For exclusive use with Pervasive Displays screens

• Basic edition: for hobbyists and for basic usage
  Creative Commons Attribution-ShareAlike 4.0 International (CC BY-SA 4.0)

  See also

  https://creativecommons.org/licenses/by-sa/4.0/


  Consider the Evaluation or Commercial editions for professionals or organisations and for commercial usage
• Evaluation edition: for professionals or organisations, evaluation only, no commercial usage
  All rights reserved
• Commercial edition: for professionals or organisations, commercial usage
  All rights reserved
• Viewer edition: for professionals or organisations
  All rights reserved
• Documentation
  All rights reserved

Macro Definition Documentation

EXPANDER_MODE

#define EXPANDER_MODE   USE_EXPANDER_NONE

Selected option.

Note

Commercial edition only

HAPTICS_MODE

#define HAPTICS_MODE   USE_HAPTICS_NONE

Selected option.

Note

Commercial edition only

MAX_FONT_SIZE

#define MAX_FONT_SIZE   64

4- Maximum number of fonts

With MCU Flash, based on available memory, check performed at compilation

• USE_FONT_TERMINAL: 1..4
• USE_FONT_HEADER: 1..64

With SPI Flash, based on the fonts previously uploaded

• USE_FONT_FLASH: eg. 64

SRAM_MODE

#define SRAM_MODE   USE_INTERNAL_MCU

Selected option.

Note

Commercial edition only

STORAGE_MODE

#define STORAGE_MODE   USE_SERIAL_CONSOLE

Selected options.

Note

Advanced and Viewer editions only

TOUCH_MODE

#define TOUCH_MODE   USE_TOUCH_NONE

Selected option.

Note

Commercial edition only

USE_hV_SCREEN

#define USE_hV_SCREEN   USE_hV_SCREEN_VIRTUAL

Selected option.

Note

Commercial edition only
